1-056-021-00-QF
MANUFACTURER: STEARNS
DESCRIPTION:

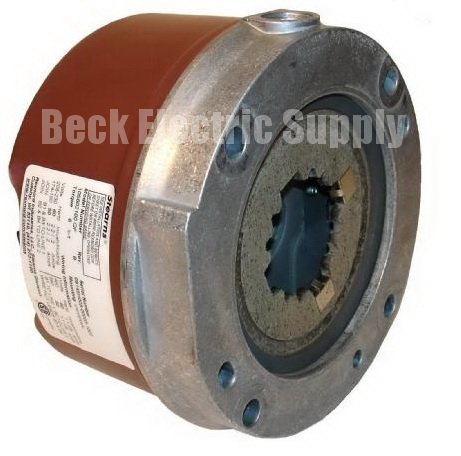

STEARNS BRAKE UNIT
6 LB-FT NOMINAL STATIC TORQUE
NEMA 2 ENCLOSURE
208-230/460 VAC 60HZ
190/380 VAC 50HZ
(SAB) SOLENOID ACTUATED BRAKE
UNIVERSAL MOUNTING
1 FRICTION DISC
LESS HUB
THIS UNIT IS DESIGNED FOR INDUSTRIAL APPLICATIONS WHICH REQUIRE HIGH PERFORMANCE IN A COMPACT LIGHTWEIGHT PACKAGE
FEATURES:
DIE CAST ALUMINUM ENDPLATE WITH STAMPED STEEL HOUSING
EXTERNAL MANUAL RELEASE KNOB WITH AUTOMATIC RESET
24 INCH LEAD WIRE
SPRING SET ELECTRICALLY RELEASED
ADJUSTABLE TORQUE TO 50% OF RATED NAMEPLATE TORQUE
MANUAL WEAR ADJUSTMENT
VISUAL WEAR INDICATOR
THROUGH SHAFT CAPABILITY
WEIGHT: 6 LBS EACH
