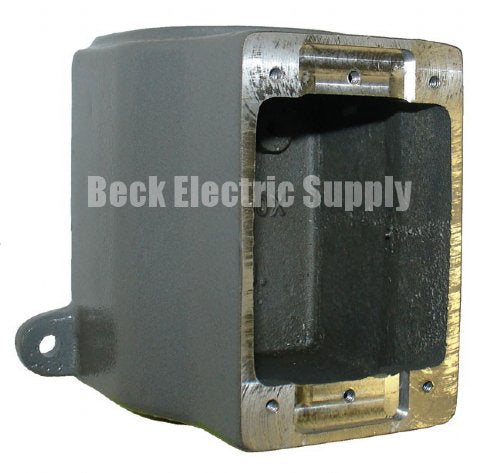

BACK BOX ASSEMBLY FS/FD 3/4" HUB RUSSELLSTOLL 3781A

3781A

MANUFACTURER: RUSSELLSTOLL

DESCRIPTION:
CAST ALUMINUM CONDUIT BOX (FOR SURFACE MOUNTING)
RECEPTACLE SIZE UP TO 50 AMP
SINGLE GANG
FURNISHED WITH ONE .75" TAPPED HUB (TOP OR BOTTOM)
FS/FD: WILL ACCOMMODATE BOTH FS (SHALLOW) AND FD (DEEP) RECEPTACLES
COPPER FREE CAST ALUMINUM (CORROSION RESISTANT)
EPOXY POWDER COAT FINISH (GRAY)
SUPPLIED WITH TAPPED GROUNDING STUD AND SCREW
THIS BOX HAS TWO EARS AND IS INTENDED FOR SURFACE MOUNTING

WEIGHT: 1.54 LBS.

DIMENSIONS:
WIDTH: 4.37" (MIDDLE OF EARS)
WIDTH: 5.19" (OUTSIDE OF EARS)
HEIGHT: 3.18" (MIDDLE OF EARS)
HEIGHT: 4.56" (OUTSIDE OF EARS)
DEPTH: 4.12"
