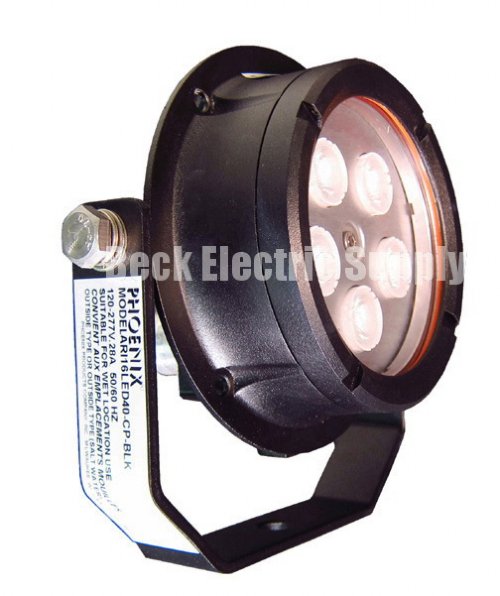

ARI16LED25
MANUFACTURER: PHOENIX PRODUCTS
NOTE: THIS ITEM HAS BEEN DISCONTINUED BY THE MANUFACTURER.
IT HAS BEEN REPLACED BY THE GRIND SERIES LED FIXTURE P/N: GND-12LED-FL IN STOCK AT OUR WAREHOUSE AND AVAILABLE FOR PURCHASE VIA OUR WEBSITE
DESCRIPTION:
ARIES LED SPOTLIGHT 16 WATT MARINE DUTY, 120V – 277VAC, 50-60HZ, 6300K, 25 DEGREE BEAM (SPOT), IP67 RATED, MARINE GRADE LOW COPPER CAST ALUMINUM HOUSING WITH TEXTURED POLYESTER POWDER COAT FINISH, BLACK FINISH, CREE XP-E LED’S WITH 50,000 HOUR RATED LIFE, CLEAR POLYCARBONATE LENS, ZINC PLATED & POWDER COATED STEEL BRACKET WITH ½” HOLE ALLOWS FOR EASY INSTALLATION, 316 STAINLESS STEEL HARDWARE, 72 INCH CORD WITH PIGTAIL PROVIDED WITH FIXTURE, DRIVER CIRCUIT BOARDS ARE CONFORMAL COATED FOR ADDED PROTECTION AGAINST DUST, MOISTURE AND VIBRATION, OVER VOLTAGE & OVER-TEMPERATURE PROTECTION
HOUSING:
DURABLE LOW COPPER CONTENT CAST ALUMINUM HOUSING
LIGHT SOURCE:
CREE XP-E LIGHT EMITTING DIODES (LED) WITH 50,000 HOURS AVERAGE RATED LIFE. SPOT HAS A 25 DEGREE BEAM ANGLE
LUMEN OUTPUT:
789 LUMENS
KELVIN TEMPERATURE:
6300K
LENS:
CLEAR POLYCARBONATE
MOUNTING BRACKET:
ZINC PLATED & POWDER COATED STEEL BRACKET WITH ½” HOLE ALLOWS FOR EASY INSTALLATION OR REPLACEMENT OF EXISTING FLOOD
HARDWARE:
316 STAINLESS STEEL
ELECTRICAL:
16 WATT, 120V – 277V AC, 50-60HZ, 6 FOOT CORD WITH PIGTAIL INCLUDED WITH FIXTURE
FINISH
TEXTURED BLACK POLYESTER POWDER COAT FINISH
WARRANTY:
STANDARD FIVE YEAR LIMITED WARRANTY AGAINST DEFECTS IN MATERIAL AND WORKMANSHIP IS STANDARD ON THIS SERIES
COMPLIANCES:
ETL/CETL CERTIFIED TO:
UL1598 – SUITABLE FOR WET LOCATIONS
UL1598A – MARINE OUTSIDE TYPE (SALTWATER)(MAR UNITS ONLY)
UL844 HAZARDOUS LOCATION (HAZ UNITS ONLY)
CLASS I, DIV II GROUPS A,B,C,D
CLASS II, DIV II GROUPS E,F,G
CLASS III
T4, 135DEG C MAX SURFACE TEMP
CSA C22.2 NO. 137 (HAZ)
CSA C22.2 NO. 250.0-08
CE
ABS
IP67 RATED FIXTURE (TEMPORARY IMMERSION)
LM79 AND LM80 REPORTS AVAILABLE
SIZE:
HEIGHT: 7” WITH BRACKET
WIDTH: 17.3CM (6.8”)
DEPTH: 8.6CM (3.4”)
WEIGHT: 5 LBS (2.27KG)
